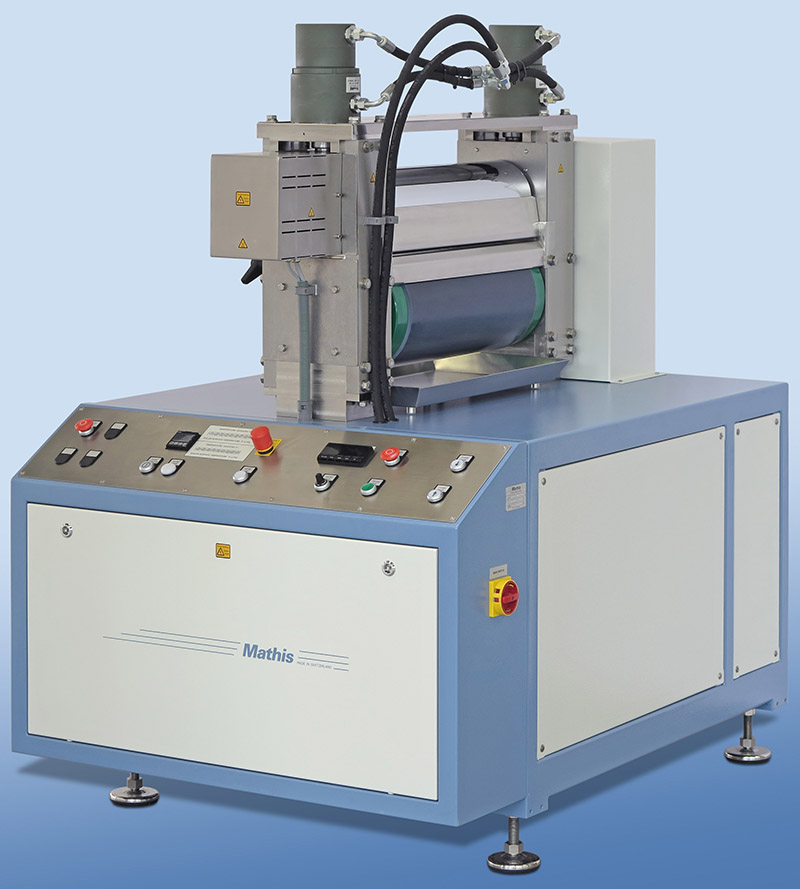

2-Roll laboratory calender type «KAL-E»
The KAL-E 2-roll laboratory calender is used to treat the surfaces of material samples. The surfaces of the material samples are calendered in different ways under pressure and using heated rolls. The calendering of textiles is carried out using a calender and plays an important role at the end of the textile finishing process. The textile surface is rolled in the calender. The pressure creates shine, smoothness, and an increase in surface density.
| 2-Roll laboratory calender type «KAL-E» |
Technical data
| Type «350» | Type «500» | |
| Roller width | 350 mm | 500 mm |
| Material width | 300 mm | 450 mm |
| Linear pressure | 130 daN/cm max. | 130 daN/cm max. |
| Material speed | 0.3 – 3 m/min infinitely variable | 0.3 – 3 m/min infinitely variable |
| Roller temperature | 30 °C – 180 °C | 30 °C – 180 °C |
| Distance setting | 0 – 5 mm | 0 – 5 mm |
| Dimensions W x D x H | 1370 x 1000 x 1570 mm | 1370 x 1000 x 1570 mm |
| Weight | ~1050 kg | ~1100 kg |
